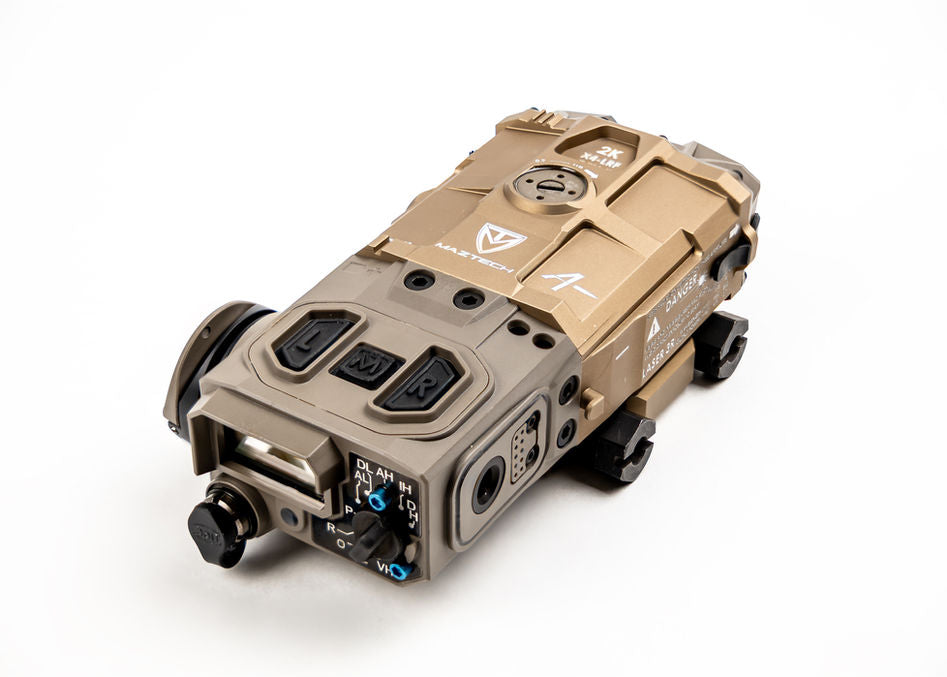

Maztech X4-LRF 2K Gen 2

The X4-LRF is a precision rangefinding device featuring co-aligned visible and infrared aiming lasers. An onboard Applied Ballistics solver works alongside integrated environmental and motion sensors to deliver a full ranging and ballistics solution in a single, compact, and durable unit.

• Oversized display remains legible in direct sunlight, even when wearing polarized lenses.

• Built to comply with MIL-STD-810 environmental standards.

• Delivers reliable ranging performance for both commercial and military use cases.

• Machined from solid billet 7075-T6 aircraft-grade aluminum.

• Designed and built in the United States.

Specs:

• Maximum Range: 2,180 yards / 2,000 m

• Aim Laser Power: 4.9 mW visible / 0.7 mW IR — Class 3R laser product

• Ranging Wavelength: 905 nm (NIR-I)

• Weight: 12.3 oz / 348 g (including battery)

• Battery Life: 10,000+ range events — one rechargeable CR123 supplied

• Wireless Connectivity: Bluetooth® Low Energy and Ultra-Wideband (UWB) — each can be disabled independently

• Rail Mount: STANAG 4694 (compatible with STANAG 2324 / Picatinny MIL-STD-1913)

• Integrated Ballistics Solver: Applied Ballistics® solver with onboard motion and environmental sensors

• Dimensions (L x W x H): 5.2 in. x 2.8 in. x 1.8 in. (133 mm x 72 mm x 47 mm)

• Battery Type: CR123A rechargeable via USB-C (supplied)

• Temperature Rating: -40°F to 140°F (-40°C to 60°C), subject to appropriate temperature-rated batteries

The X4-LRF also comes with:

• Rechargeable CR123 battery

• USB-C charging cable

• Lens cleaning cloth

• Drawstring bag

• X4-LRF Alignment Target

• 5/64 Allen Key

• Mini flathead screwdriver

• Bluetooth® USB Dongle

• Quick Start Guide

• User Manual

• Maztech Patch

• Maztech Stickers

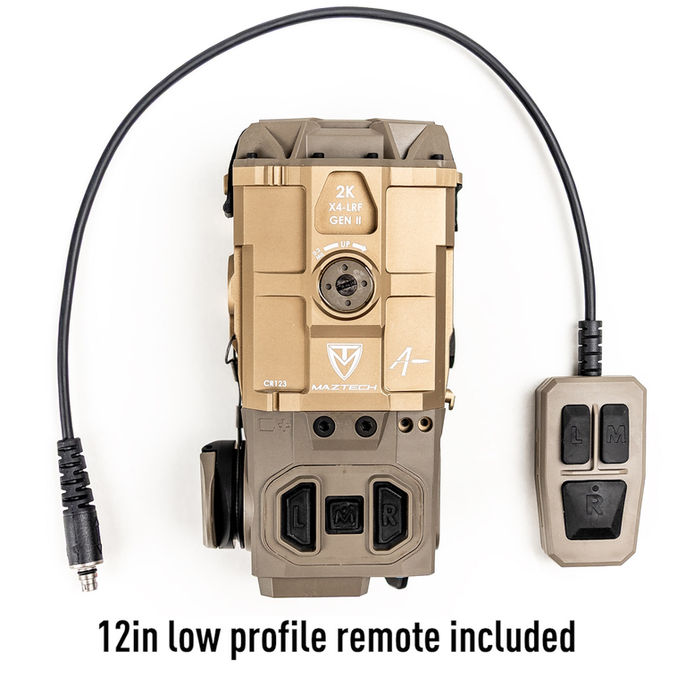

• X4 Low-Profile Remote (12” cable length).
